The dedicated check valve for car washing machine is a key component to ensure the stable operation of car washing equipment. It is made of 304 stainless steel material, ensuring long-term sealing and structural strength under high-pressure conditions, water hammer impact, and chemical cleaning agent corrosion environment.
Product Overview

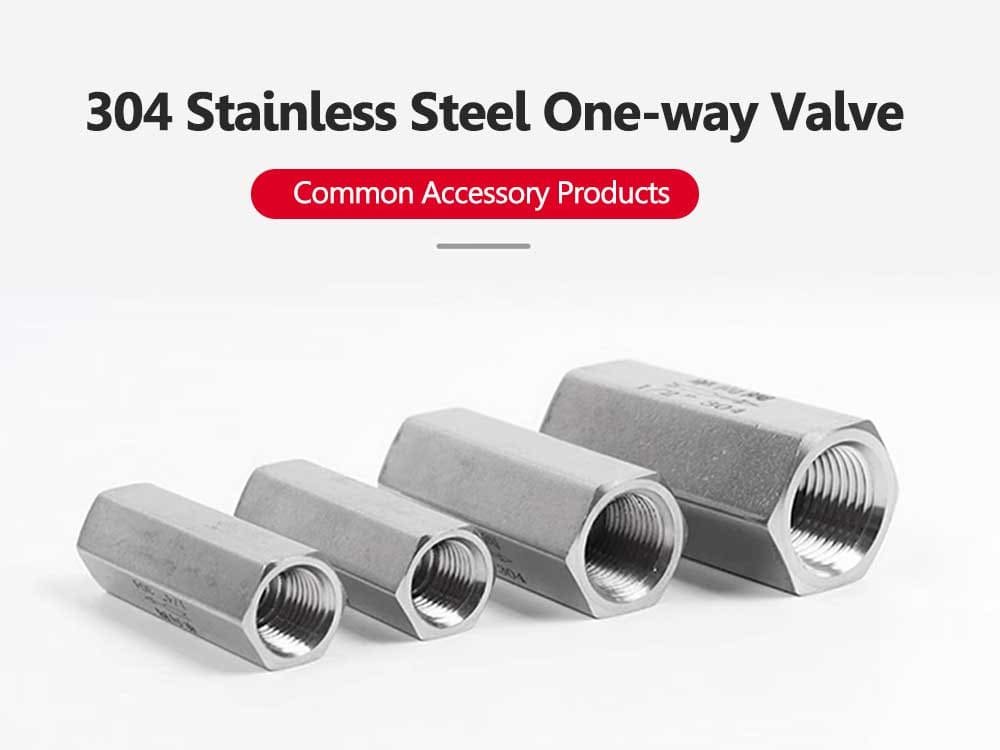

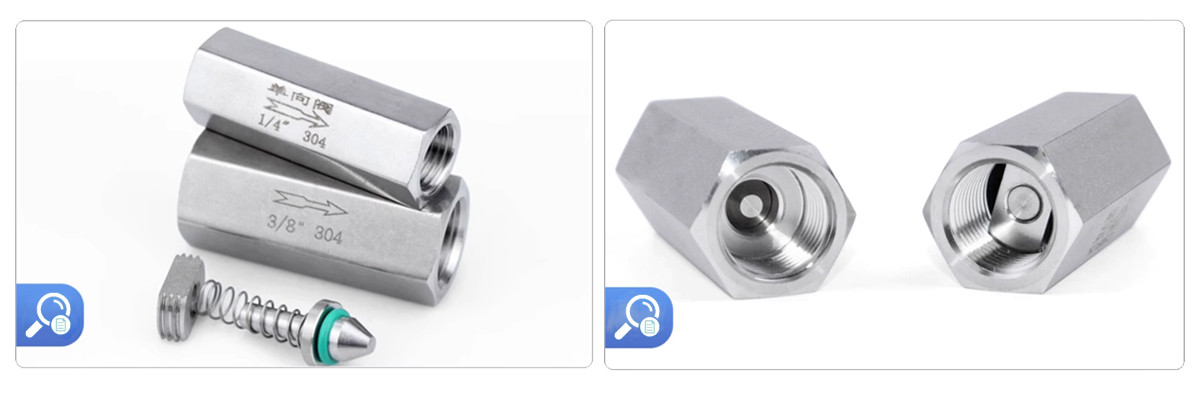

Car wash machine dedicated check valve, also known as a check valve, is a crucial waterway control component. It is made of 304 stainless steel to ensure long-term sealing and structural strength under high pressure, water hammer effects, and corrosion from various chemical cleaners.
This valve is elegantly designed, compact in structure, and easy to integrate into the water intake system or pump body piping of a car wash machine. Its core feature is unidirectional flow, allowing water to flow in only one fixed direction and effectively preventing backflow of the medium. This is an indispensable important component for ensuring the stable operation of car wash machines and extending the lifespan of core components.
| Product Name | 304 Stainless Steel One-way Valve |
| Material | 304 Stainless Steel |
| Built-in Threads | ZG-M-NPT-G |
| Activate Pressure | 1.2-2kg |
| Matching Fittings | PU pipes, PTFE pipes, nylon pipes, and other plastic hoses |
| Temperature | Within 220°C |
| Applicable Media | Oil, water, gas, and other non-corrosive or corrosive media |
Size Chart
| Product Specifications | 1/4 | 1.3 inch |
| Thread inner Diameter | 12mm | 30..4mm |
| Hexagonal Opposite Sides | 17mm | 38mm |
| Total length | 49mm | 74mm |
Functions
Prevent backflow and protect the pump
When the car wash machine suddenly stops, the high-pressure water in the pipeline instantly flows back towards the pump, generating a massive “water hammer” impact. The check valve can quickly close, blocking the return flow path, effectively absorbing and mitigating the water hammer effect, preventing high-pressure water from reversing the impact on the pump impeller and mechanical seal, thereby avoiding pump damage and significantly extending its lifespan.
Prevent chemical agents from interfering with each other to ensure operational purity
When switching between different medications (such as from foam spraying to clear water rinsing), the check valve reliably prevents car wash, water wax, or foam concentrate from flowing back into the clear water line. This feature ensures that different agents do not contaminate each other, guaranteeing that each output liquid is a preset, pure agent, thereby achieving optimal cleaning and care results while avoiding waste of concentrated liquid.
Maintain pipeline pressure to enhance response speed
During standby or pause water spraying periods, the check valve prevents stored water from the high-pressure pipe from flowing back into the tank or source, ensuring that the pipe remains fully charged and maintains a certain pre-pressure level. When you pull the spray gun trigger again, the system instantly establishes working pressure, enabling immediate use and eliminating water discharge delays and pressure fluctuations, ensuring the continuity and efficiency of car washing operations.
Avoid siphoning and contamination
For self-priming car washers that draw water from the tank, the check valve effectively prevents water from the tank from being continuously drawn out or external air from entering the pipes due to siphoning during shutdown. At the same time, it can also isolate backflow of sewage or foam that has entered the pipes, preventing contamination of clean water sources or concentrate tanks, and ensuring the purity of different cleaning agents.
Improve equipment reliability
By preventing medium backflow and related damage, check valves fundamentally reduce equipment failures caused by issues such as water hammer and pressure instability, lower maintenance frequency and costs, and ensure the long-term stability and reliability of car washers.
