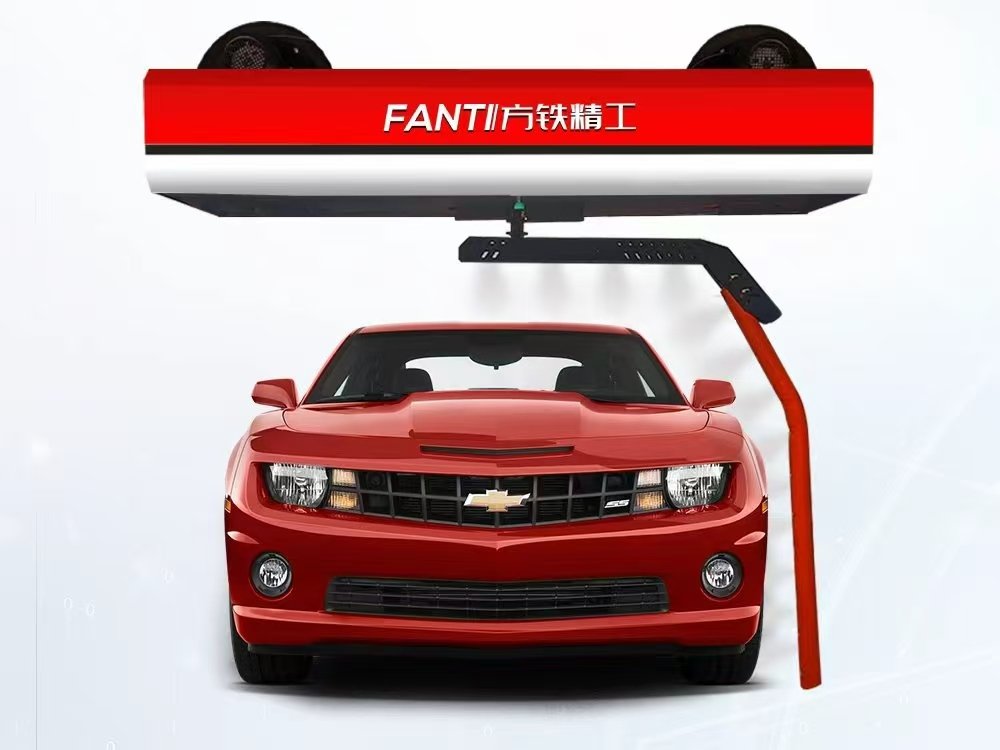

Built for first-time business owners, gas stations, and local service hubs, this rotary touchless car wash uses Dynamic Spiral Spray Technology with 4 adjustable rotating arms for full 360° coverage. No brushes and less blowers mean 15% lower upfront costs vs. traditional systems, while using just few money per wash—perfect for startups, self-service kiosks, or small shops.
Why Entrepreneurs Choose This System?
✅ Lowest Entry Cost: Base model under $15,000 | Add coin-operated systems or app payments later
✅ Easy DIY Maintenance: Open-frame design cuts downtime 70% and save the people cost.
✅ High-Profit Throughput: Wash 12-15 cars/hour. Ideal for gas stations, strip malls or roadside trailers
✅ All-Vehicle Ready: Auto-adjusts from compacts to SUVs.
Basic Technical Specifications
| Model NO. | FT-EcoSeries E200 |
| Type | Cold Water High Pressure Car Cleaner |
| HS Code | 8424899990 |
| Nozzle Type | Fan-Shaped Nozzle |
| Condition | New |
| Customized | Customized |
| Output Power | 15KW |
| Power consumption per vehicle | 0.5-1.0KW/Car Adjustable |
| Single Gross Weight | 100kg |
| Size | 3.5m*3.2m*6.3m |
| Color | Red and Grey or Customized |
| Material | Stainless Steel with Galvanized+Spray Painted |
| Water Pump | Imported From Germany |
| Pressure: 50kg Flow Rate: 124L/MIN | |
| Car Wash Time | General Washing takes about 3min/car,fine washing takes about 5min/car |
| Voltage | 380V/Customized |
| Water wax consumption per vehicle | 100L-140L/Car Adjustable |
| Single Car Consumption of car wash fluid | 20-150ML/Car Adjustable |
| Air Drying Function | Two Fans 5.5kw*2 |
| MOQ | 1 Set |
| Production Time | 15 Days |
| Packing Size | 12CBM |
Core Features & Functions
·Single-arm 360° variable-frequency rotating spray
Combines high-pressure water and precise rotation for full coverage.
·Four modes switching
Includes high-pressure rinse, foam, water wax, and drying modes.
·Automatic car wash liquid proportioning system
Adjusts ratios of detergents, foam, and wax without manual intervention.
·One-button automatic drainage
Prevents liquid residue in pipes for cold-weather operation.
·One-button start/reset
Simplified operation with automatic fault recovery.
·Ultrasonic distance detection
Accurately measures vehicle position and adjusts spray range.
·Self-diagnosis and alarm system
Monitors operational status and alerts for faults.
·Car wash record counting and query
Tracks usage data for management and analysis.
·Intelligent anti-collision with vehicle stopper
Uses sensors and physical barriers to protect vehicles and equipment.
·LED light box
Provides real-time instructions and status updates.
·High-concentration foam spraying
Applies dense foam for enhanced dirt removal and paint protection.
·Touch-free car wash liquid spraying
Atomizes detergent for uniform coverage without manual wiping.
·Water wax coating spray
Forms a protective layer against UV rays and pollution.
·Mobile omni-directional drying
High-speed airflow dries all surfaces efficiently.
·Chassis and side door flushing
High-pressure jets clean undercarriage and hard-to-reach areas.
·Colorful LED lighting
Enhances visual appeal and customer experience.
·Backend management system
Enables remote monitoring, data analysis, and software updates.
·QR code payment system【Giftable function】
Supports cashless transactions via mobile scanning.
Hot Markets for Quick ROI
▸ Gas station add-on services (12/wash)
▸ Self-service bays in apartment complexes
▸ Convenience store “express wash” corner
▸ Touchless Mobile car washGlobal Service Network
Global Service Network
Onsite Support: 24-hour response for critical issues (e.g., pump failure).
Training & Upgrades: Free operator training and lifetime software updates.
Spare Parts: German/Japanese components ensure long-term reliability.
Request a Demo
Contact us today to schedule a free onsite demo. Let’s redefine car care together!
