Product Overview

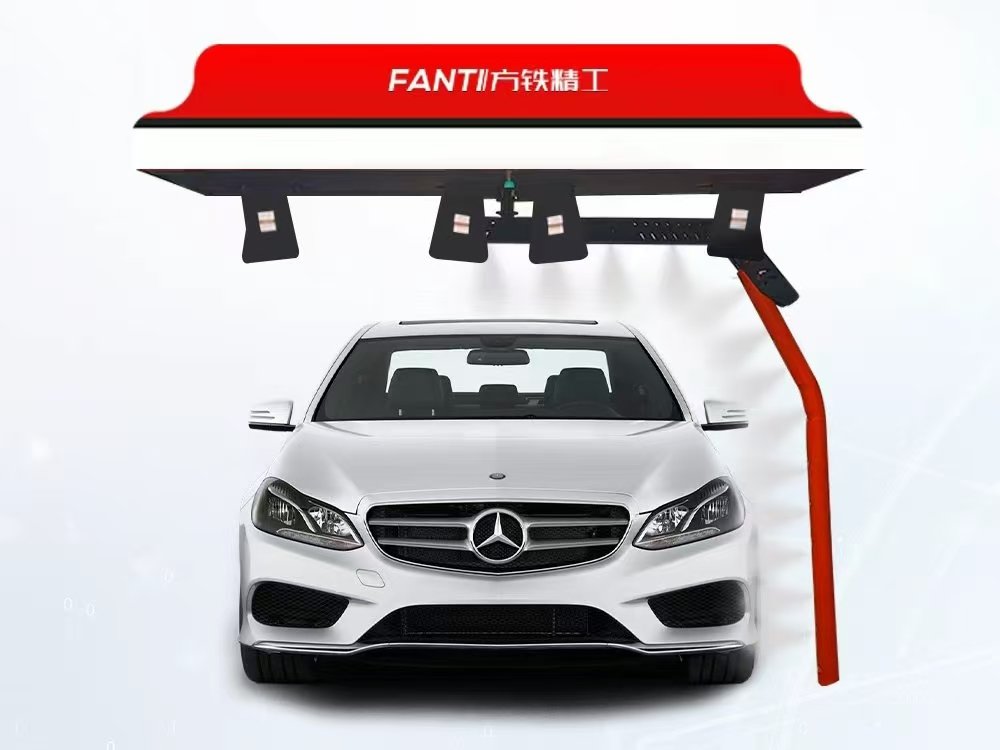

Our unmanned car wash machine utilizes a Fully Automatic Smart Car Wash System, integrating IoT technology and AI algorithms to deliver rapid cleaning in just 3-5 minutes. Equipped with vehicle automatic recognition technology, it precisely adapts to sedans, SUVs and other vehicle types. The 360° high-pressure water jet cleaning eliminates physical brush contact with the car surface, preserving paint finish integrity while ensuring thorough removal of dirt from hard-to-reach areas like chassis and roof panels. Users simply scan a QR code to initiate the service.
Basic Technical Specifications
| Model NO. | FT-EcoSeries E300 |
| Type | Cold Water High Pressure Car Cleaner |
| HS Code | 8424899990 |
| Nozzle Type | Fan-Shaped Nozzle |
| Condition | New |
| Customized | Customized |
| Output Power | 15KW |
| Power consumption per vehicle | 0.5-0.85KW/Car Adjustable |
| Single Gross Weight | 100kg |
| Size | 3.5m*3.2m*6.3m |
| Color | White and Red or Customized |
| Material | Stainless Steel with Galvanized+Spray Painted |
| Water Pump | Imported From Germany |
| Pressure: 100kg Flow Rate: 110L/MIN | |
| Car Wash Time | General Washing takes about 3min/car,fine washing takes about 5min/car |
| Voltage | 380V/Customized |
| Water wax consumption per vehicle | 80L-140L/Car Adjustable |
| Single Car Consumption of car wash fluid | 20-150ML/Car Adjustable |
| Air Drying Function | Four Fans 4kw*4 |
| MOQ | 1 Set |
| Production Time | 15 Days |
| Packing Size | 12CBM |
Core Features & Functions
·Single-arm 360° variable-frequency rotating spray
Combines high-pressure water and precise rotation for full coverage.
·Supports remote control via mobile system and remote start
Enables remote operation and emergency stop.

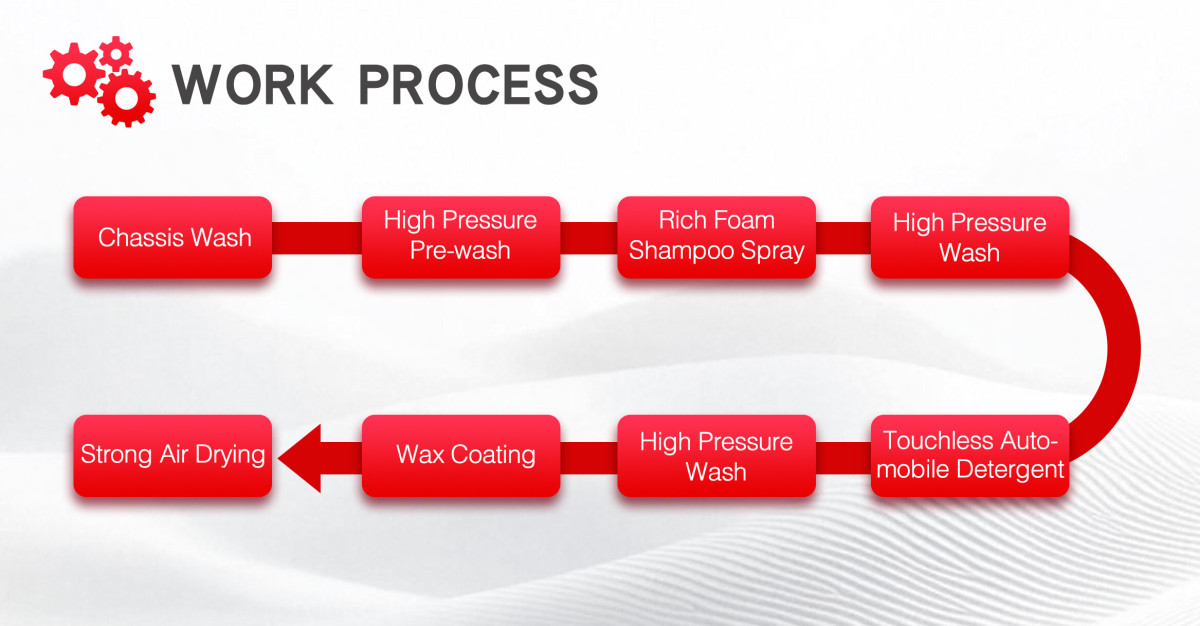

·Four modes switching
Includes high-pressure rinse, foam, water wax, and drying modes.
·Automatic car wash liquid proportioning system
Adjusts ratios of detergents, foam, and wax without manual intervention.
·One-button automatic drainage
Prevents liquid residue in pipes for cold-weather operation.
·One-button start/reset
Simplified operation with automatic fault recovery.
·Ultrasonic distance detection
Accurately measures vehicle position and adjusts spray range.
·Self-diagnosis and alarm system
Monitors operational status and alerts for faults.
·Car wash record counting and query
Tracks usage data for management and analysis.
·Intelligent anti-collision with vehicle stopper
Uses sensors and physical barriers to protect vehicles and equipment.
·Signal indicator lights
Provides real-time instructions and status updates.
·High-concentration foam spraying
Applies dense foam for enhanced dirt removal and paint protection.
·Touch-free car wash liquid spraying
Atomizes detergent for uniform coverage without manual wiping.
·Water wax coating spray
Forms a protective layer against UV rays and pollution.
·Mobile omni-directional drying
High-speed airflow dries all surfaces efficiently.
·Chassis flushing
High-pressure jets clean the car undercarriage areas.
·Colorful LED lighting
Enhances visual appeal and customer experience.
·Silent air compressor
Reduces noise during operation.
Application Scenarios
Gas Stations: 24/7 unmanned service with integrated payment systems.
Car Dealerships: Enhance brand image with showroom-ready cleaning.
Urban Parking Hubs: Compact footprint (6.3m × 3.5m×3.2m) fits tight spaces
Global Service Network
Onsite Support: 24-hour response for critical issues (e.g., pump failure).
Training & Upgrades: Free operator training and lifetime software updates.
Spare Parts: German/Japanese components ensure long-term reliability.
Request a Demo
Contact us today to schedule a free onsite demo. Let’s redefine car care together!
