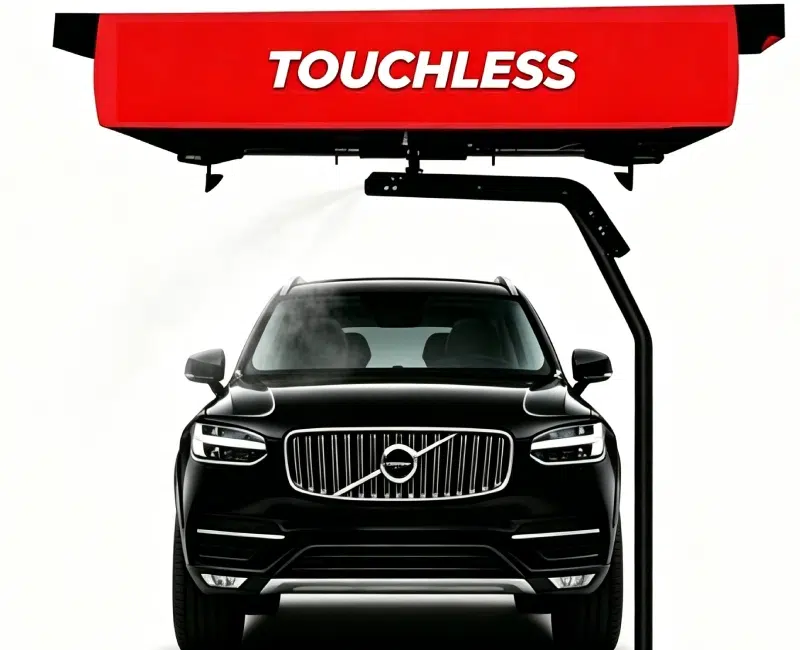

The L8Pro belongs to the L8 series of fully automatic touchless car wash machines. It adopts a 360° surround high-pressure washing system and is equipped with an air-drying system (4 kW × 4) and hydrophobic / molecular coating wax functions. The unit features smart sensing, physical + electronic anti-collision, automatic dosing, and voice announcement, suitable for gas stations, parking lots, and car wash shops, enabling fast, unattended or lightly-staffed operation.
| Parameter | Value |
| Number of blowers | 4kw*4 |
| Undercarriage & wheel side spray | None |
| Arm washing method | 360° surround high-pressure wash |
| Foam function | Spray type |
| Touch-free pre-wash detergent | Supported |
| Coating wax function | Hydrophobic coating |
| Air-drying function | Supported |
| Smart start | Supported |
| Remote control | Supported |
| Enhanced wash | Front & rear enhanced wash |
| Frame | Hot-dip galvanized anti-rust |
| Mobile app connectivity | None |
| VFD / energy-saving / heavy-duty | None |
| Voice announcement | None |
| Guidance screen | Traffic-light indicator |
| Head panel LED lighting | None |
| Machine dimensions (mm) | 2600*950*500 |
| Installation dimensions (mm) | 7000*3500*3100 |
| Equipment room | ≥ 8 m² |
| Weight / volume | 1800kg/8m³ |
| AI control system | Xinje industrial control |
| Reducer & motor | Yaoxi custom (IP67 waterproof) |
| Pump flow & pressure | 72L/100Bar |
| Pump motor power & voltage | Brand 4-pole motor |
| Water pump | Bertolini |
| Ultrasonic sensor | German Pepperl+Fuchs |
| Electrical components | CHINT |
| Piping | Double-layer steel-wire braided HP hose |
| Size and size | |||||
| machine size（mm） | 2600*950*500 | 2600*950*500 | 2600*950*500 | 2600*950*500 | 2600*950*500 |
| Installation size (mm) | 7000*3500*3100 | 7000*3500*3100 | 7000*3500*3100 | 7000*3500*3100 | 7000*3500*3100 |
| Equipment Room | Above 8m² | Above 8m² | Above 8m² | Above 8m² | Above 8m² |
| Package size | No.1:3200*1200*1100 No.2:2000*1200*1200 No.3:400*300*6100 | No.1:3200*1200*1100 No.2:2000*1200*1200 No.3:400*300*6100 | No.1:3200*1200*1100 No.2:2000*1200*1200 No.3:400*300*6100 | No.1:3200*1200*1100 No.2:2000*1200*1200 No.3:400*300*6100 | No.1:3200*1200*1100 No.2:2000*1200*1200 No.3:400*300*6100 |
| Weight/Volume | 1800kg/8m³ | 1800kg/8m³ | 1900kg/8m³ | 1850kg/8m³ | 1920kg/8m³ |
| Equipment accessories and brand | |||||
| AI intelligent control system | Xinjie Industrial Control | Xinjie Industrial Control | Siemens | Xinjie Industrial Control | Siemens |
| Reducer and motor | Tailored ray wash (IP67 waterproof) | Tailored ray wash (IP67 waterproof) | Tailored ray wash (IP67 waterproof) | Tailored ray wash (IP67 waterproof) | Tailored ray wash (IP67 waterproof) |
| Shooting and proximity switch | Tailored ray wash (IP67 waterproof) | Tailored ray wash (IP67 waterproof) | Tailored ray wash (IP67 waterproof) | Tailored ray wash (IP67 waterproof) | Tailored ray wash (IP67 waterproof) |
| Touch screen control | Kunlun Tongtai | Kunlun Tongtai | Kunlun Tongtai | Kunlun Tongtai | Kunlun Tongtai |
| Electrical components | chint | chint | chint | chint | chint |
| Pump flow rate and pressure | 72L/100Bar | 100L/100Bar | 100L/100Bar | 138L/100Bar | 138L/100Bar |
| Power and voltage of water pump motor | Brand level four motor 11kw-4/380V |
Brand level four motor 15kw-4/380V | Brand four level motor: 15kw-4/380V Heavy duty frequency converter: 18.5kw | Brand level four motor 18.5kw-4/380V | Brand four level motor: 18.5kw-4/380V Heavy duty frequency converter: 22kw |
| Water pump | Botulini | Maasten, Germany | Maasten, Germany | Maasten, Germany | Maasten, Germany |
| Ultrasonic testing | Germany Beijiafu | Germany Beijiafu | Germany Beijiafu | Germany Beijiafu | Germany Beijiafu |
| Industrial cables | Shanghai Qifan | Shanghai Qifan | Shanghai Qifan | Shanghai Qifan | Shanghai Qifan |
| Pipe | Double layer steel wire wound high-pressure water pipe | Double layer steel wire wound high-pressure water pipe | Double layer steel wire wound high-pressure water pipe | Double layer steel wire wound high-pressure water pipe | Double layer steel wire wound high-pressure water pipe |
| payment system | |||||
 | Configuration A | Configuration B | |||
| 15-inch screen, VIP card, management software: 10,000 ￥ | 27 inch screen, POS machine+VIP card, coin machine, banknote machine, chain management software: 15000 ￥ | ||||
| Other function options | |||||
| Receipt Printing：+700yuan | Coin Change：+1500yuan | ||||
| peripheral products | |||||
Wipe free pre cleaning solution18L 120 /barrel | Waterproof coating wax,18 liters, 70/barrel | Concentrated foam concentrate 2L 25 yuan/barrel | Dehydrator 2000 yuan/unit | Carpet quick drying machine 3500 yuan/set | Automatic foot pad cleaning machine 6000 yuan/set |
The new vacuum cleaner costs 520 yuan per unit | Silent air compressor 100L+3500 yuan | Car wash shop honeycomb light (including bracket) 780 yuan  | Ground grid 50 yuan/square meter | Car wash water circulation system+10000 | 1T/h 19000元 2T/h 31000元 3T/h 41000元 Reverse osmosis treatment equipment 1T/h 19000 2T/h 31000 3T/h 41000  |
| Quick automatic door+5000 (Within 9 square meters)  | 1000L water bucket, brand new 900 yuan, second-hand 680 yuan  | ||||
