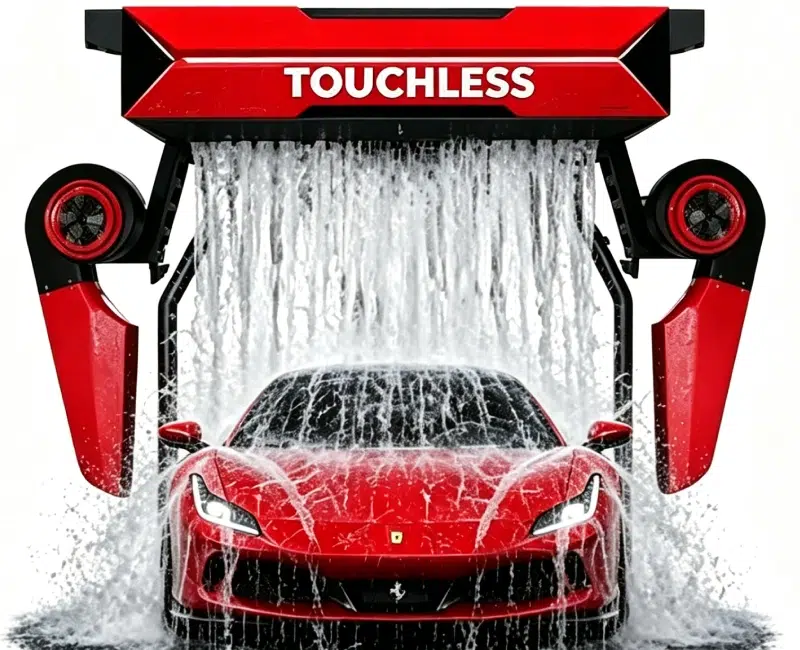

The M9Ultra belongs to the M9 series of fully automatic touchless car wash machines. It adopts a 180° × 2 dual-arm high-pressure washing system, supports undercarriage & wheel side spray, and is equipped with an air-drying system (5.5 kW × 6 + 3 × 11 kW heavy-duty VFD) with both spray and waterfall foam. It features hydrophobic / molecular coating wax, variable RGB head-panel lighting, LED light box / LCD guidance screen, and mobile app connectivity. Suitable for gas stations, parking lots, and car wash shops.
| Parameter | Value |
| Number of blowers | 5.5kw*6+3组11KW重载变频器 |
| Undercarriage & wheel side spray | Supported |
| Arm washing method | 180° × 2 dual-arm high-pressure wash |
| Foam function | Spray & waterfall type |
| Touch-free pre-wash detergent | Supported |
| Coating wax function | Hydrophobic coating |
| Air-drying function | Supported |
| Smart start | Supported |
| Remote control | Supported |
| Enhanced wash | Front & rear enhanced wash |
| Frame | Hot-dip galvanized + electrostatic spray |
| Mobile app connectivity | Supported |
| VFD / energy-saving / heavy-duty | Supported |
| Voice announcement | Supported |
| Guidance screen | LED light box (custom language) |

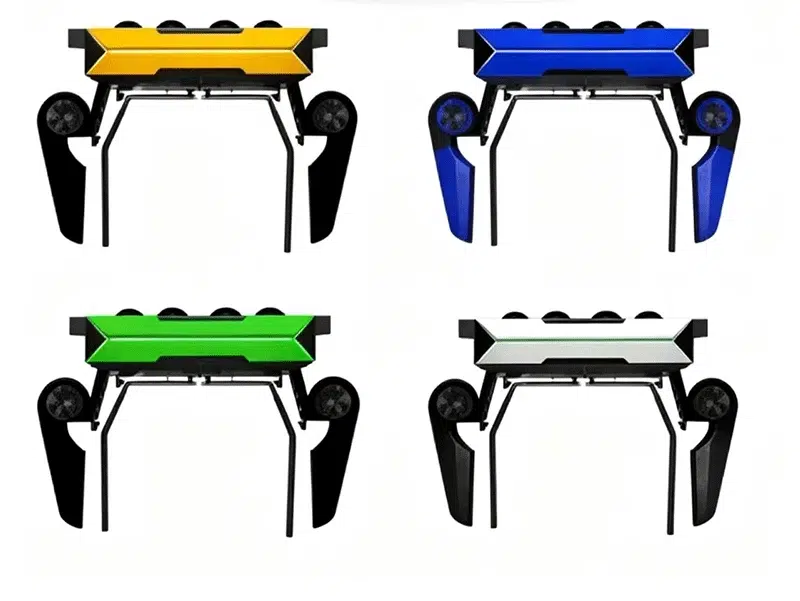

| Head panel LED lighting | Variable RGB lighting |
| Machine dimensions (mm) | 2600*950*500 |
| Installation dimensions (mm) | 7000*4500*3100 |
| Equipment room | ≥ 8 m² |
| Weight / volume | 1920kg/8m³ |
| AI control system | Siemens |
| Reducer & motor | Yaoxi custom (IP67 waterproof) |
| Pump flow & pressure | 138L/100Bar |
| Pump motor power & voltage | Brand Level 4 Motor：18.5kw-4/380V |
| Water pump | German Meister HP plunger pump |
| Ultrasonic sensor | German Pepperl+Fuchs |
| Electrical components | CHINT |
| Piping | Double-layer steel-wire braided HP hose |
| Size and size | ||||||
| machine size（mm） | 2400*700*490 | 2600*950*500 | 2600*950*500 | 2600*950*500 | 2600*950*500 | 2600*950*500 |
| Installation size (mm) | 6500*3300*3100 | 7000*3500*3100 | 7000*3500*3100 | 7000*4500*3100 | 7000*4500*3100 | 7000*4500*3100 |
| Equipment Room | Above 6m² | Above 8m² | Above 8m² | Above 8m² | Above 8m² | Above 8m² |
| Package size | No.1:3200*1200*1100 No.2:400*300*6100 | No.1:3200*1200*1100 No.2:2000*1200*1200 No.3:400*300*6100 | No.1:3200*1200*1100 No.2:2000*1200*1200 No.3:400*300*6100 | No.1:3200*1200*1100 No.2:2000*1200*1200 No.3:400*300*6100 | No.1:3200*1200*1100 No.2:2000*1200*1200 No.3:400*300*6100 | No.1:3200*1200*1100 No.2:2000*1200*1200 No.3:400*300*6100 |
| Weight/Volume | 870kg/6m³ | 1700kg/8m³ | 1700kg/8m³ | 1800kg/8m³ | 1850kg/8m³ | 1850kg/8m³ |
| Equipment accessories and brand | ||||||
| AI intelligent control system | Taiwan Xinjie | Taiwan Xinjie | Taiwan Xinjie | Taiwan Xinjie | Taiwan Xinjie | Taiwan Xinjie |
| Reducer and motor | Customized industrial grade | Italian SSJ | Italian SSJ | Italian SSJ | Italian SSJ | Italian SSJ |
| Shooting and proximity switch | Tailored ray wash | Pubang | Pubang | Pubang | Pubang | Pubang |
| Touch screen control | Taiwan Xinjie | Taiwan Xinjie | Taiwan Xinjie | Taiwan Xinjie | Taiwan Xinjie | Taiwan Xinjie |
| Electrical components | chint | chint | chint | chint | chint | chint |
| Pump flow rate and pressure | 72L/80Bar | 100L/100Bar | 138L/100Bar | 100L/100Bar | 138L/100Bar | 100L/100Bar |
| Power and voltage of water pump motor | 11kw-4/380V Brand level four motor 11kw-4/380V | 15kw-4/380V Brand level four motor 15kw-4/380V | 18.5kw-4/380V Brand level four motor 18.5kw-4/380V | 15kw-4/380V Brand level four motor 15kw-4/380V | 18.5kw-4/380V Brand level four motor 18.5kw-4/380V | 18.5kw-4/380V Brand level four motor 18.5kw-4/380V |
| Water pump | Domestic high-pressure plunger pump | Maasten, Germany | Maasten, Germany | Maasten, Germany | Maasten, Germany | Maasten, Germany |
| Ultrasonic testing | Germany Beijiafu | Germany Beijiafu | Germany Beijiafu | Germany Beijiafu | Germany Beijiafu | Germany Beijiafu |
| Industrial cables | Shanghai Qifan | Shanghai Qifan | Shanghai Qifan | Shanghai Qifan | Shanghai Qifan | Shanghai Qifan |
| Pipe | Double layer steel wire wound high-pressure water pipe | Double layer steel wire wound high-pressure water pipe | Double layer steel wire wound high-pressure water pipe | Double layer steel wire wound high-pressure water pipe | Double layer steel wire wound high-pressure water pipe | Double layer steel wire wound high-pressure water pipe |
| Optional configuration | ||||||
| payment system | Colorful Waterfall+7000 | |||||
 | Configuration A |  | ||||
| 15-inch screen, VIP card, management software: 10,000 ￥ | ||||||
| Configuration B | ||||||
| 22 inch screen, POS machine+VIP card, chain management software: 15000 ￥ | ||||||
| Coin machine：+500yuan | Banknote validator：+1500yuan | Receipt Printing：+700yuan | Coin Change：+1500yuan | |||
| peripheral products | ||||||
Quick automatic door+5000 (Within 9 square meters)
| Silent Air Compressor (100L) + 3,500 Yuan
| Wipe free pre cleaning solution 18L 120 /barrel  | Waterproof coating wax, 18 liters, 70/barrel  | Concentrated foam concentrate 2L 25 yuan/barrel  | ||
Car wash water circulation system+10000 | 1T/h 13500元 2T/h 23500元 3T/h 31000元 Purified water treatment equipment (underground water is optional for car washing) 1T/h 13500 2T/h 23500 3T/h 31000  | Car wash shop floor grille 50 yuan/square meter  | Wall mounted vacuum cleaner+450  | Car wash shop honeycomb light+800 | ||
